Bundle for 2-3 Rooms / Double Storey Building Signal Booster Set-up Voice & Data 2g/3g/4g/5g

R15,990


  • VOICE AND DATA – ALL SOUTH AFRICA NETWORKS
  • 2G 3G 4G  AND 5G VOICE AND DATA
  • UP TO 1800 M2
  • UP TO 65 SIMULTANEOUS USERS
  • 3 YEARS WARRANTY

Share it:
Compare

BUNDLE

2-3 Rooms / Double Storey Building Signal Booster Set-up Voice & Data 2g/3g/4g/5g

Vodacom | Mtn | Rain | Telkom | Cel C

Bundle





INSTALLATION GUIDE

This schematic serves as a guide for a straightforward and seamless installation in your desired building or home where a signal is required. The installation process is highly simplified, and we’ve provided clear schematics to assist you. Additionally, our team will be available by phone throughout the installation process to offer support.

IF WE INSTALL FOR YOU

If you prefer professional installation, our experienced installers are ready to assist. We will provide a quote for this service, starting at a minimum charge of R3,500, depending on your location this amount might be less or more

YOUR LOCAL ELECTRICIANS / TV INSTALLERS

Note:  You also have the option to hire a local electrician or handle the installation yourself. If a local electrician, chosen installer, or TV technician performs the installation, our experts will be available by phone to guide them through the process.

Double storey building set up

OUR BUNDLE FOR 2-3 ROOMS/ DOUBLE STOREY All NETWORKS SIGNAL BOOSTER  is designed to provide you with significant improvement in properties that have 2-3 rooms or Double storey building with up to 2 rooms upstairs and two room downstairs in all 2G 3G 4G and (5G) (if available in your area) mobile phone signal coverages and Data transmissions.  It is custom to boost all South African mobile voice, text, and 3G data, 4G and 5G, It also comes with super upgraded gains of 65/85db and pulling power of 19-23 dBm which is why it has the ability to contain up to 2500 sqm2 coverage area.

The  Bundle comes with all accessories needed to sort your signal coverage at home with 2 rooms or storey building with an average of 3 room

  • MGC – DIGITALLY CONTROLLED IN 1DB STEPS
  • ALC & AGC – 0 TO 30 DB
  • UPGRADED GAIN LEVEL 65/85DB
  • RSSI SIGNAL STRENGTH INDICATOR
  • OSCILLATION ALARM SUPPORTS
  • DURABLE INDUSTRIAL DESIGN
  • HIDDEN MOUNTING BRACKET
  • CE 0700 APPROVED LEGAL TO USE

 Triband All Networks Signal Booster Supports:

  • ALL SOUTH AFRICAN NETWORKS
  • 2G/3G/4G/5G VOICE AND DATA
  • UP TO 2500 M2
  • UP TO 150 SIMULTANEOUS USERS
  • 3 YEARS WARRANTY

This Bundles All Networks Signal Booster is most ideal for use in Medium Homes & Office / Business premises as it will provide and enhance a strong and uninterrupted mobile phone signals, ensuring you are always connected with your clients from your mobile phone and other devices in the office at all time. Super Tri-band booster is an all-time booster that will boost signals for high-speed data downloads/uploads and 4G Lite and 5G.

IF YOU ARE LOOKING AT MULTI FLOORS OR ROOM MORE THAN WHAT IS STARTED ABOVE, PLEASE CONTACTS US AS ADDITIONAL ACCESSORIES MAY BE REQUIRED

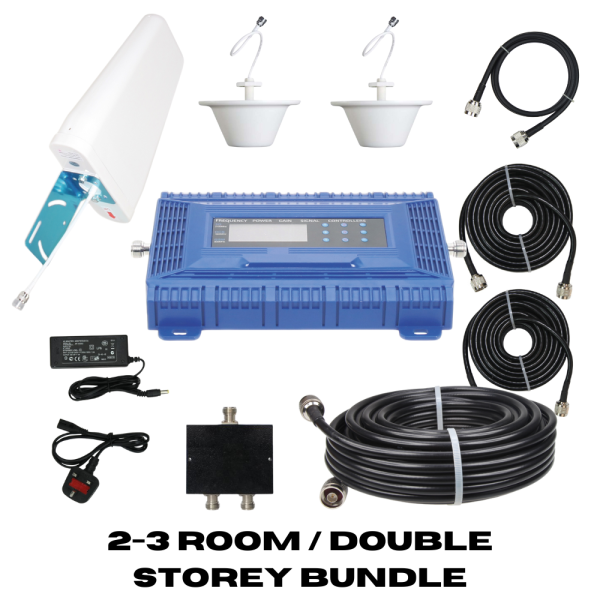

What’s In The Box With Your Booster

  • 1 x  Triband All Networks signal booster
  • 1 x Outdoor  Antenna
  • 2 x indoor omni Antenna
  • 1 x 2 Ways Splitters
  • 1 x 1 metre
  • 1 x 15-meter Coaxial Cable
  • 1 x AC/DC Power Supply
  • 2 x  10 metre Cables
  • 1 x Easy to work with Installation Manual

Note: The purchase of extra accessories might be required if you intend to extend signal coverage to multi rooms and offices. Speak to us about this.

Product Specifications

SKU WB9183
Gain UL 29~60dBDL 34~65dB
Power 19~23dBm
Coverage 2500m2
Frequency GSM 900MHz: UL 890~915MHz – DL 935~960MHzGSM1800MHz: UL 1710~1785MHz – DL 1805~1880MHz

3G UMTS: UL 1920~1990MHz – DL 2110~2180MHz

Ripple in Band ≦ 5dB
Spurious Emission  ≦ -30dBm ~ -36dBm
Max Noise Figure ≦ 6dB
Return Loss ≦ 3dB
Time Delay ≦ 0.5μs
MTBF > 50000hours
Power Supply AC100~240V 50~60Hz / DC12V 2A (Included)
Power Consumption  < 10 Watt
Impendence 50 Ω
Connector N-Female as standard
Cooling Heatsink convection cooling
Dimensions (DxWxH) 275x210x38mm
Weight 2280 Gram
Environment Conditions IP 40
Humidity < 90%
Operating Temperature 10°C – 60°C
